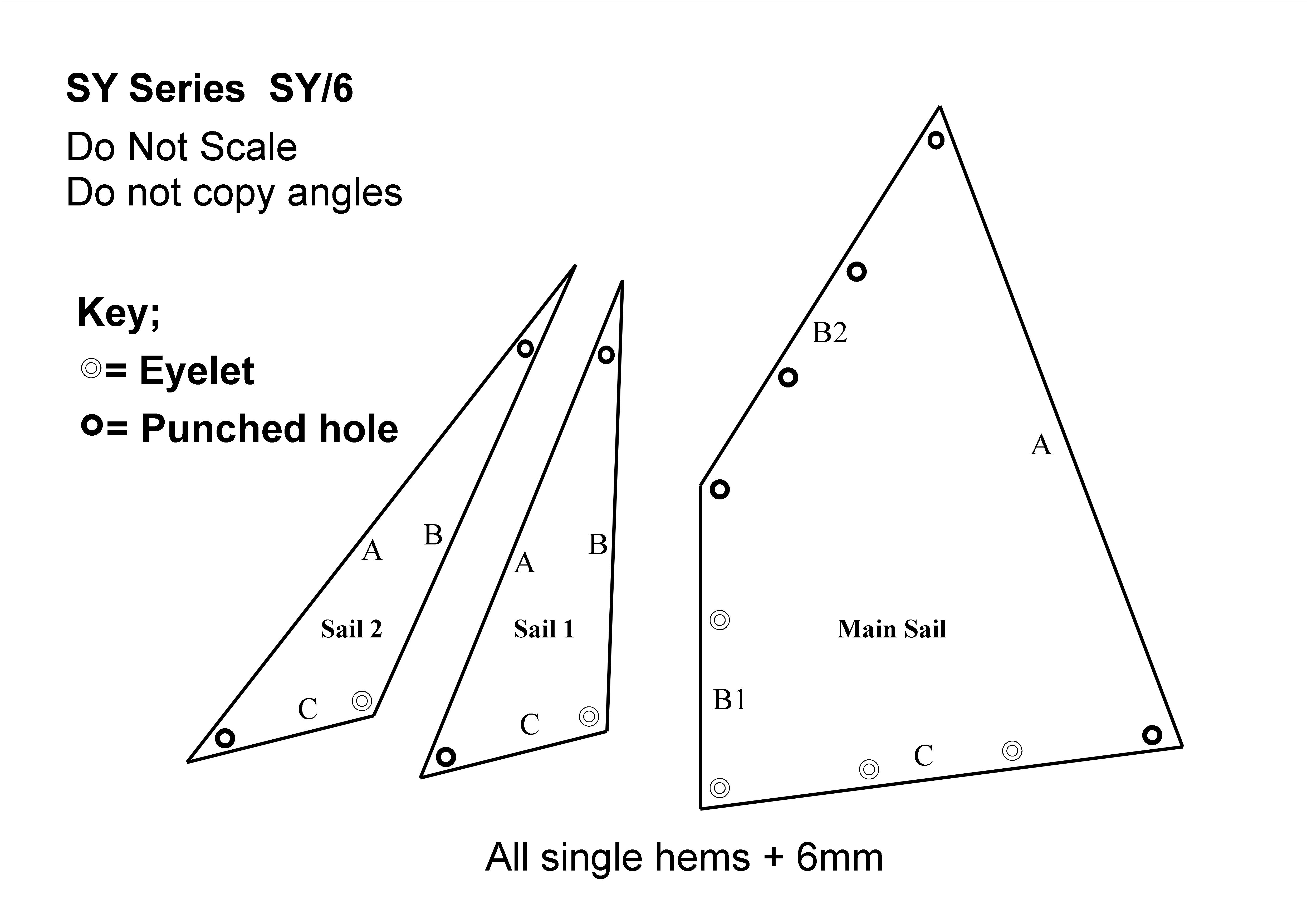

Sail Templates   Click on diagram to obtain larger image

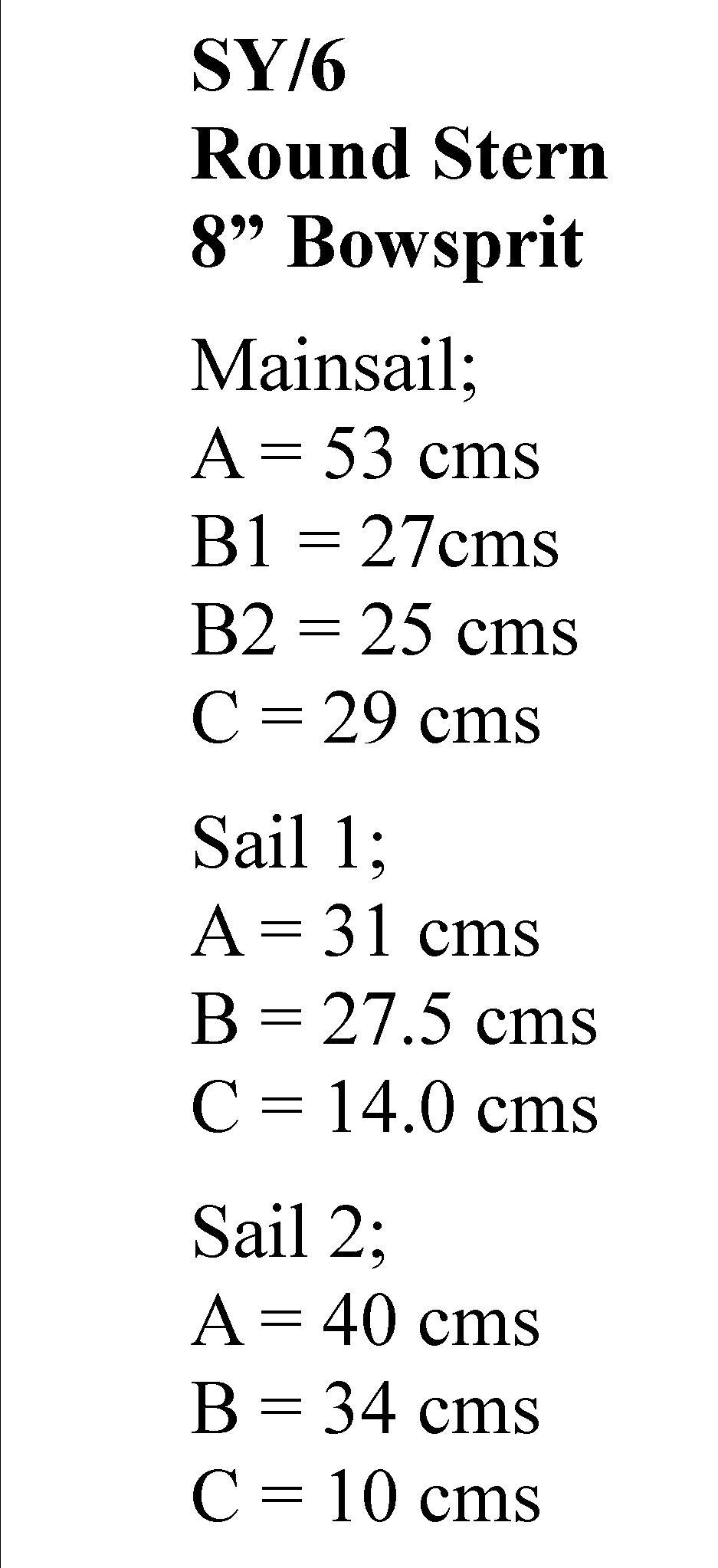

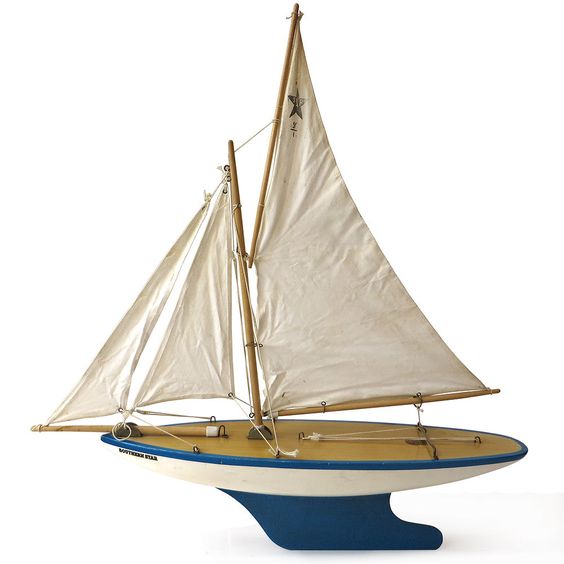

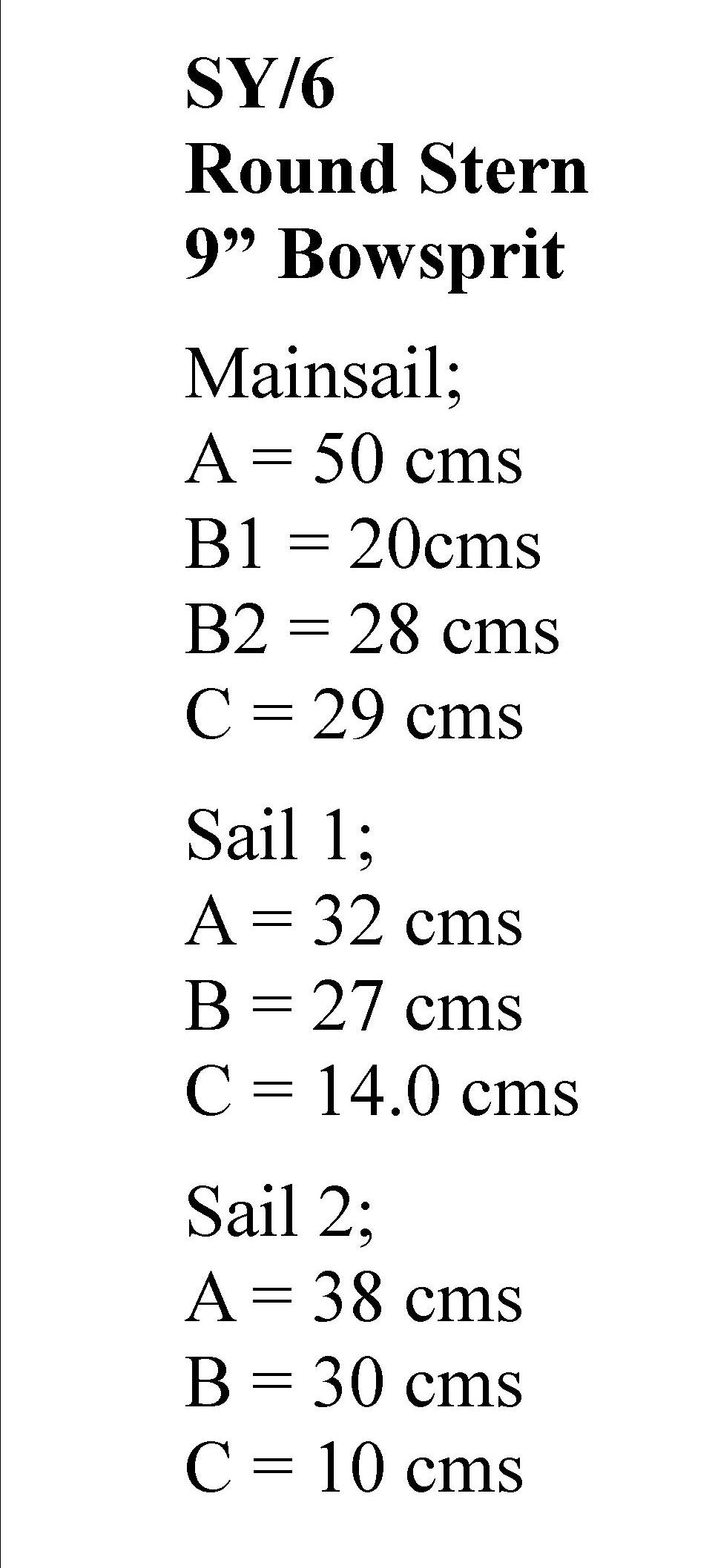

Be aware that over the years of production there were different lengths of bowsprits which affected the bottom measurement and height of the jib sails.  The correct term for the SY/6 sail layout is "High peak gaff".

For personal use only.

Sail diagrams are copyright of The Birkenhead Star Yacht Appreciation Society © 2019
