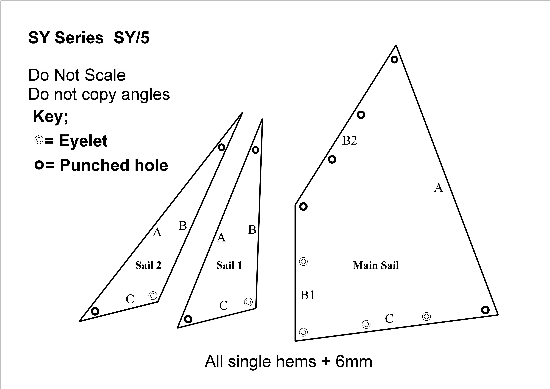

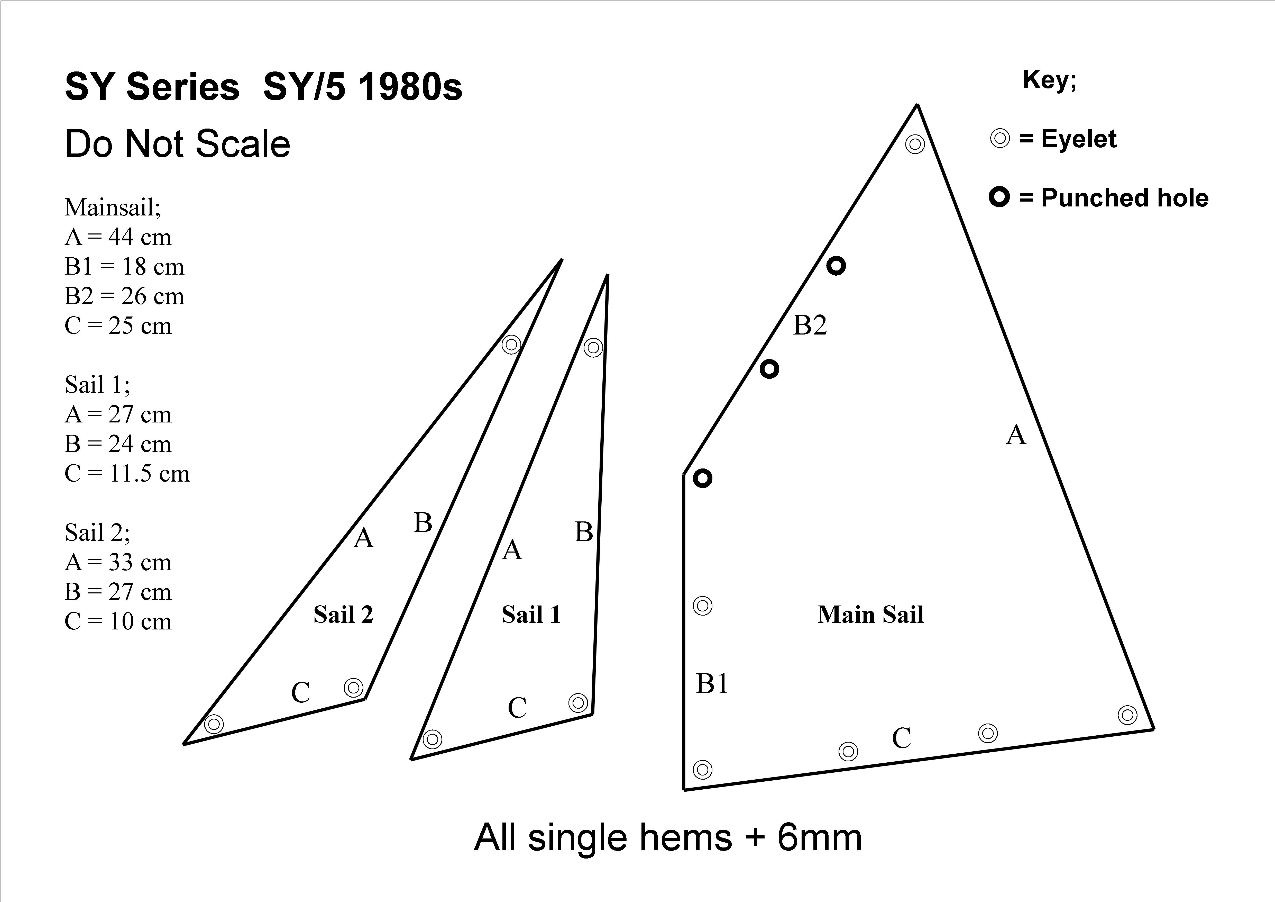

Sail Templates   Click on diagram to obtain larger image

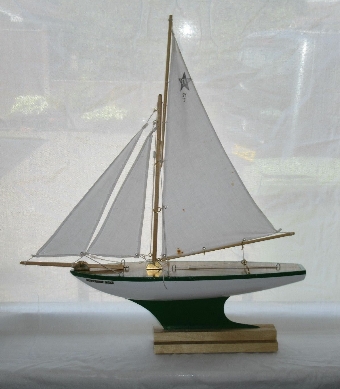

The correct term for the SY/5 sail layout is "High peak gaff".

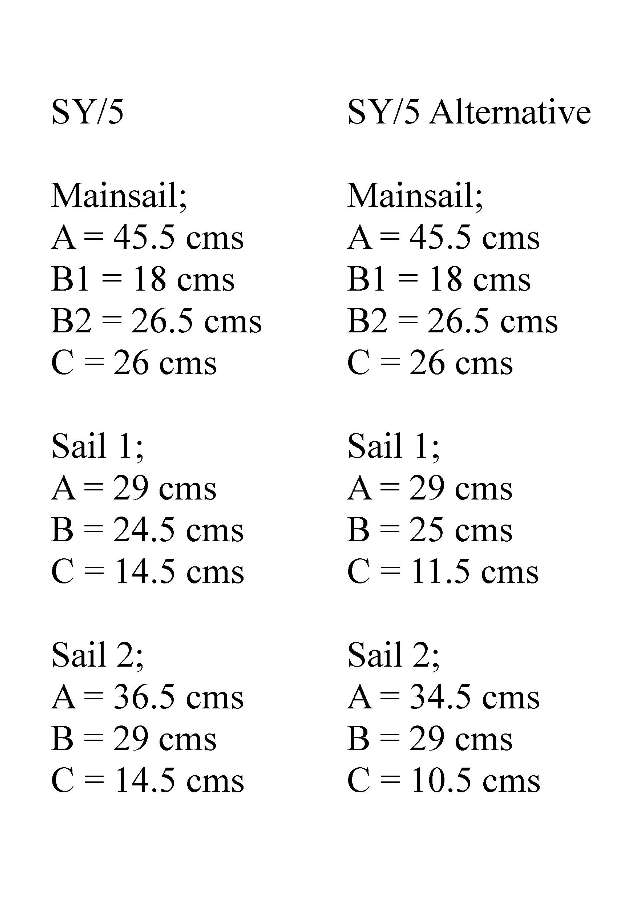

Templates are for a guide only as sizes did vary by a little over the years in production.

Make paper test sails first and adjust accordingly.

For personal use only.

Sail diagrams are copyright of The Birkenhead Star Yacht Appreciation Society © 2019
