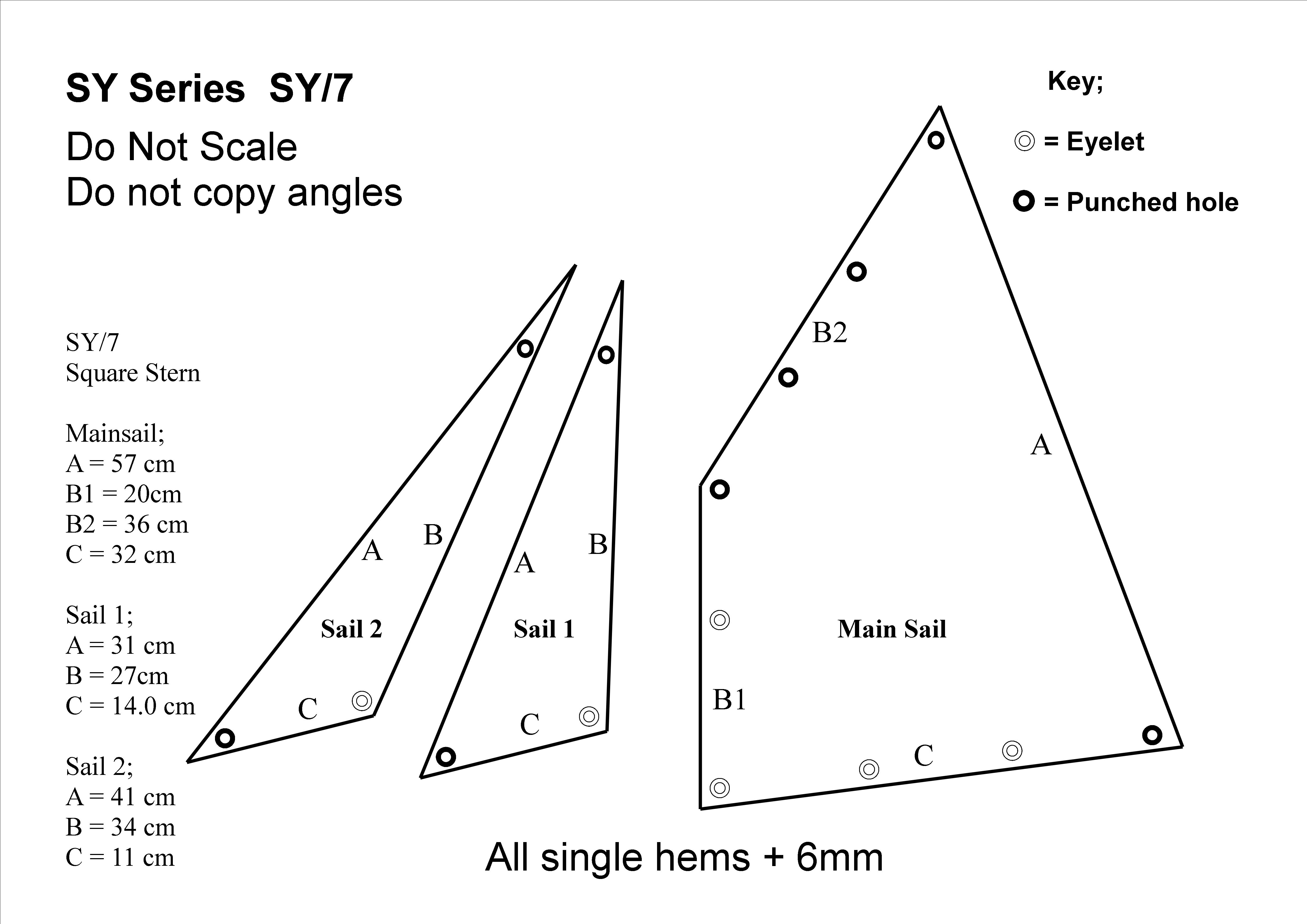

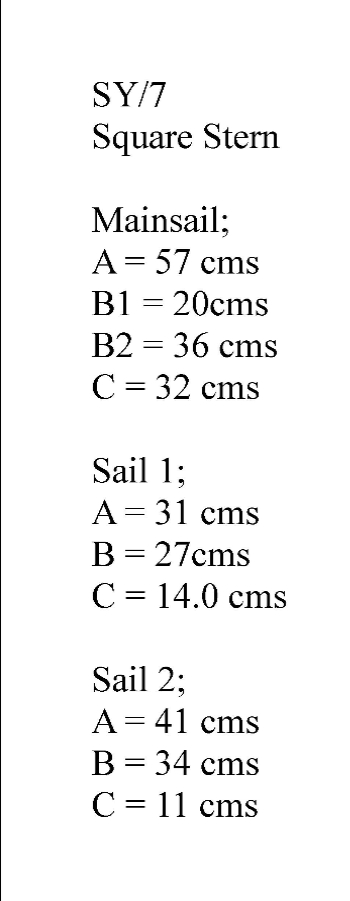

Sail Templates Click on diagram to obtain larger image

Be aware that over the years of production there were different lengths of bowsprits which affected the bottom measurement and height of the jib sails. The correct term for the SY/7 sail layout is "High peak gaff".

Please note: Mainsail trailing edge on has inward curve of 1/2".

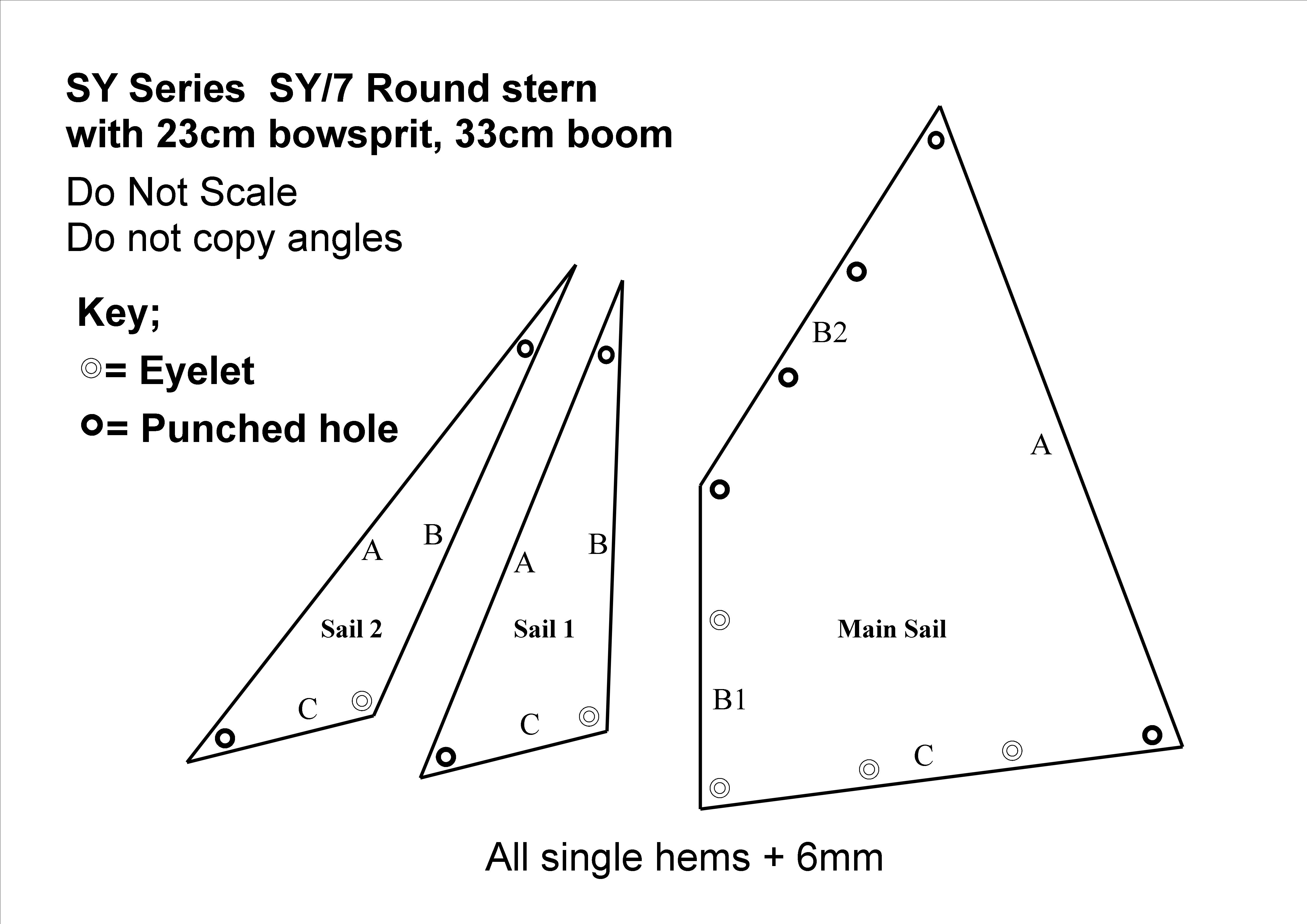

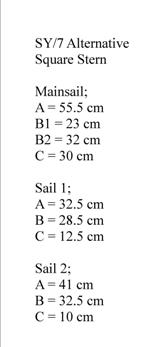

Later sails were smaller. With Round Stern

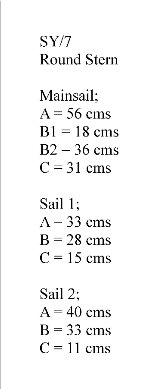

Early round stern SY/7s had the mast sited 2 cm forward than later ones

Please note: Mainsail trailing edge on has inward curve of 1/2".

For personal use only.
